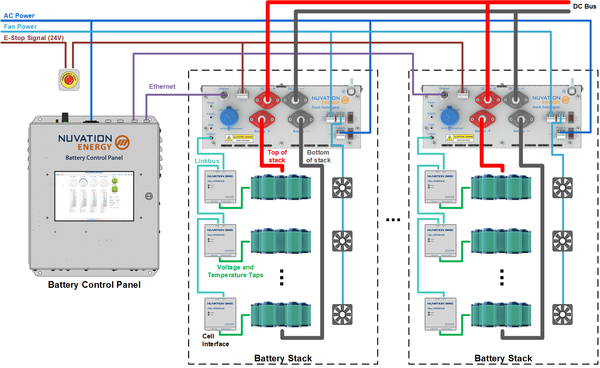

High-Voltage BMS - System Overview

Cell Interface

NUV100-CI-12-1
Regular price $265

In Stock

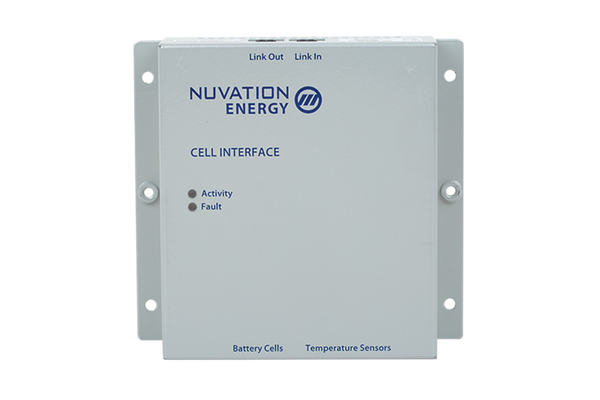

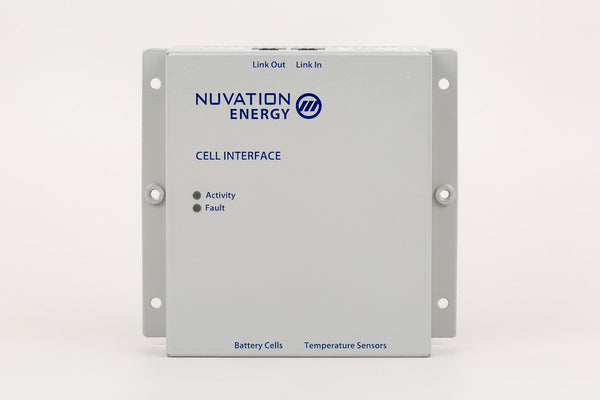

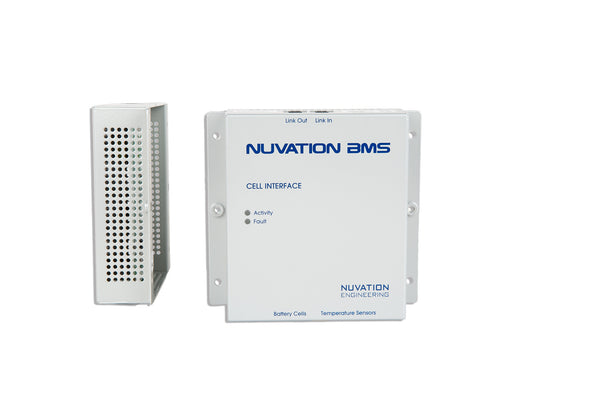

The Cell Interface module measures voltage and temperature, provides cell balancing. The Cell Interface module is compatible with both Low-Voltage BMS and High-Voltage BMS.

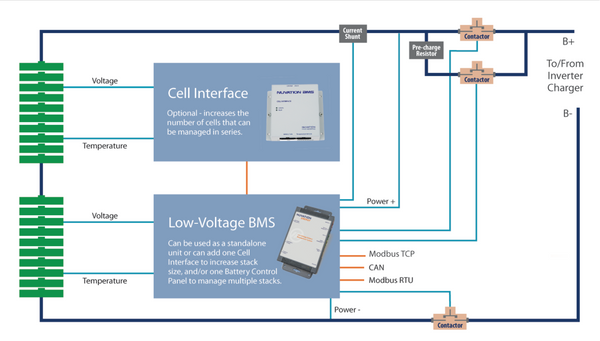

In a High-Voltage BMS, multiple Cell Interface module manage series-connected cells to reach voltages of up to 1250 VDC. For Low-Voltage BMS systems, Cell Interface modules can be added to increase the number of series-connected cells in an 11-60V DC stack.

Compatible with: This is an add-on and requires either a High-Voltage BMS or a Low-Voltage BMS.

    Purchase Options:

    • Channels:
      • 12 channel - enables you to monitor up to 12 series-connected cells
      • 16 channel - enables you to monitor up to 16 series-connected cells
      • 4 channel (12V) - enables you to monitor up to 4 series-connected 12V Lead-Acid monoblocks. (Only supported in High-Voltage BMS. Not supported for Low-Voltage BMS)

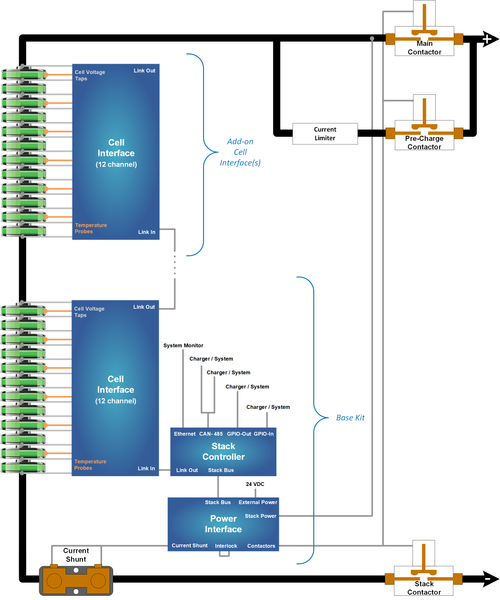

    Note: This product may be purchased as a kit which includes modules, cables, and accessories.

    For datasheets, manuals, guides, and other technical resources, please visit:

     Nuvation Energy - Technical Resources
