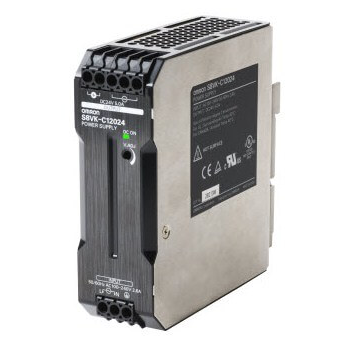

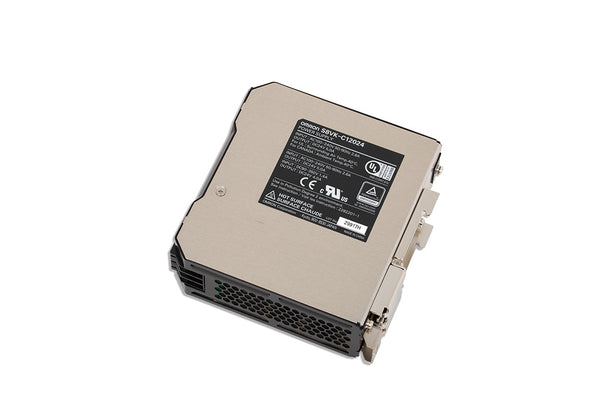

Part, Power Supply, 24VDC, 5A, DIN Mount

Part, Power Supply, 24VDC, 5A, DIN Mount

NUVX-OM-S8VK-C12024
Regular price $64

Ships in 4-6 weeks

For cost-sensitive applications that require a dependable high-quality power supply, this power supply is an ideal choice.

Specifications:

  • 120W power rating
  • 24V Output Voltage, 5A Output Current
  • Operating temperature range of -25º to +60ºC
  • Dielectric strength: 3kVAC between input and output, 2kVAC between input and earth, 1kVAC between output and earth
  • Double set of DC output terminals (three for the negative) provide easy wiring
  • Universal input capability, 100 to 240 VAC and 90 to 350 VDC
  • Conforms to EN61204-3, EN55011 Class A
  • Improved DIN-rail mounting clip provides a better resistance to vibrations and allows easy installation (using one hand to mount in a flash)

For more specifications, please refer to the Datasheet
