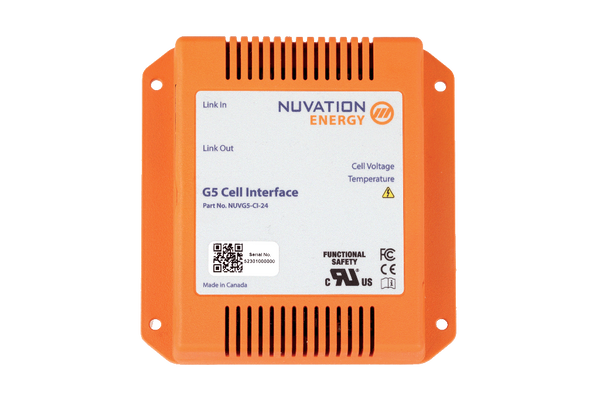

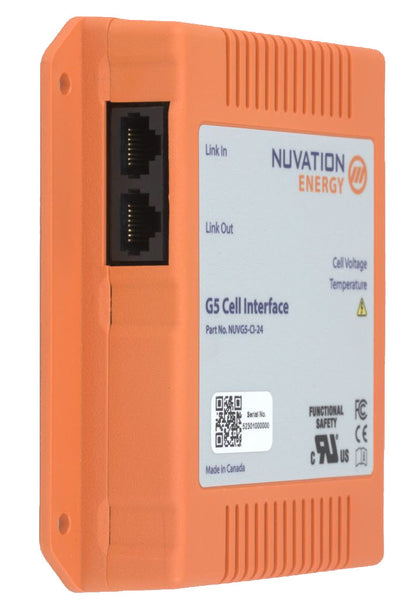

G5 Cell Interface, 24 Channel

The G5 Cell Interface module measures voltage and temperature, provides cell balancing. It is compatible with the G5 Stack Switchgear.

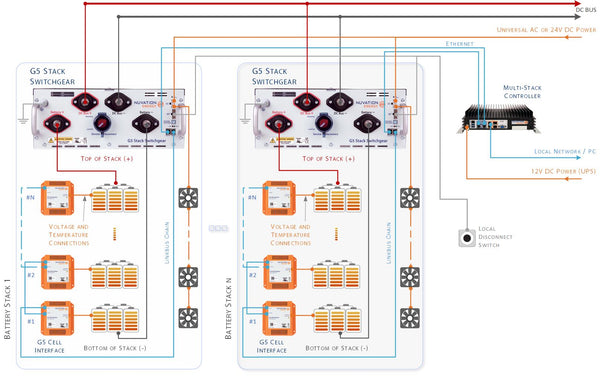

In a G5 BMS, multiple G5 Cell Interface modules mange series-connected cells in the 1.6 V – 4.3 V range to reach voltages of up to 1500 VDC.

G5 Cell Interface modules are designed to enable UL 1973 certification of the battery stack.

Compatible Products: This is a component of the G5 BMS solution and requires a G5 Stack Switchgear.

Purchase Options

• Cable Kit

• No Kit
• Kit with 2 thermistor cable, which includes
• 1x Voltage, Thermistor, 24 channel, 2 sensor, 2m

• 1x CAT.5e, UTP, Ethernet, 60VDC, 2m

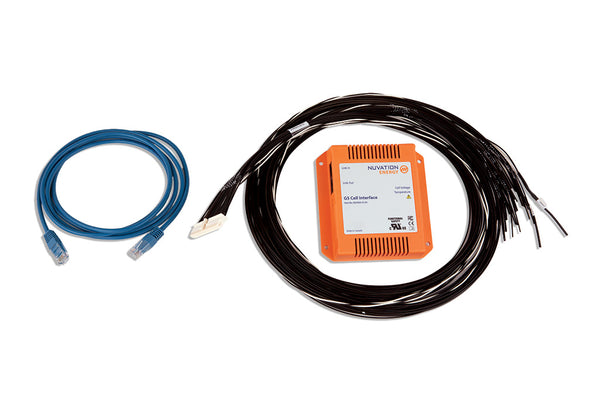

• Kit with 8 thermistor cable, which includes
• 1x Voltage, Thermistor, 24 channel, 8 sensor, 2m
• 1x CAT.5e, UTP, Ethernet, 60VDC, 2m
