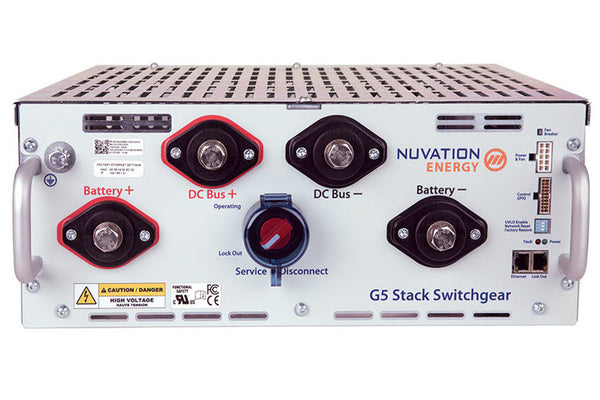

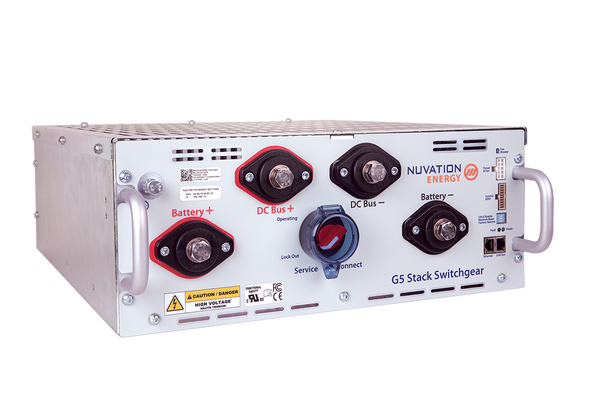

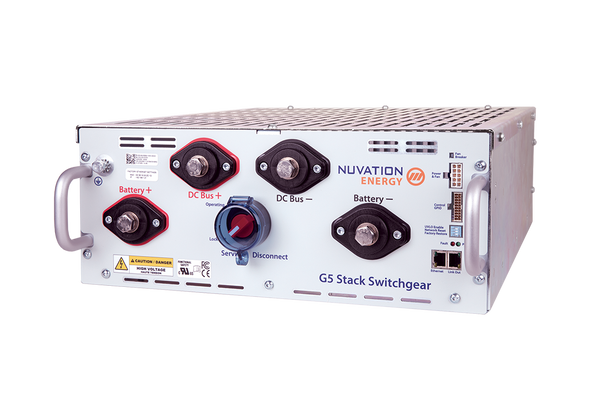

G5 Stack Switchgear

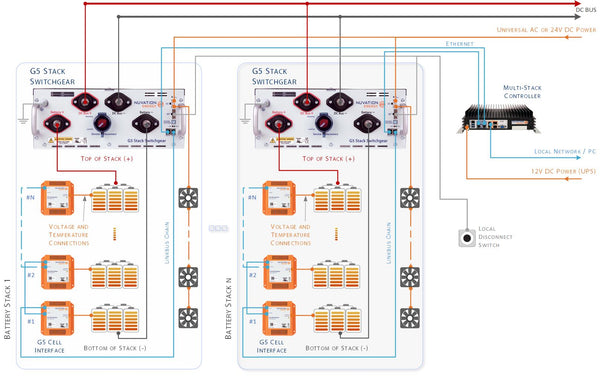

The G5 High-Voltage BMS supports up to 1500 V DC battery stacks and modules that use cells in the 1.6 V – 4.3 V range. It offers cutting edge features such as continuous cell balancing and the ability to manage 24 battery cells with each series-connected G5 Cell Interface module.

For more details, please refer to the G5 High-Voltage BMS – Datasheet.

Purchase Options

• Current Rating
  • 200 A G5 Stack Switchgear with:
    • 200 A fuse

    • 250 A fuse

    • 315 A fuse
  • 300 A G5 Stack Switchgear with:

    • 315 A fuse
    • 350 A fuse
    • 400 A fuse
    • 450 A fuse
    • 500 A fuse
  • 350 A G5 Stack Switchgear with:

    • 350 A fuse
    • 400 A fuse
    • 450 A fuse
    • 500 A fuse
• Bracket

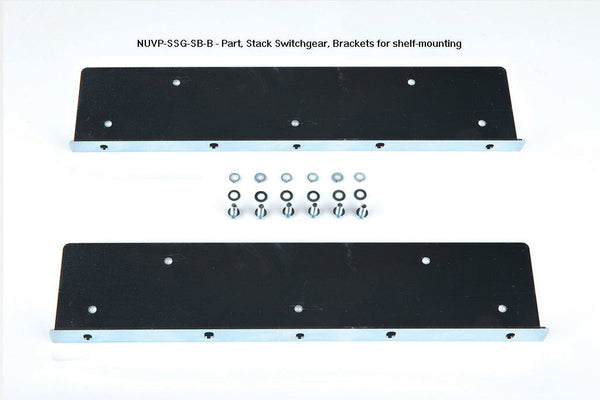

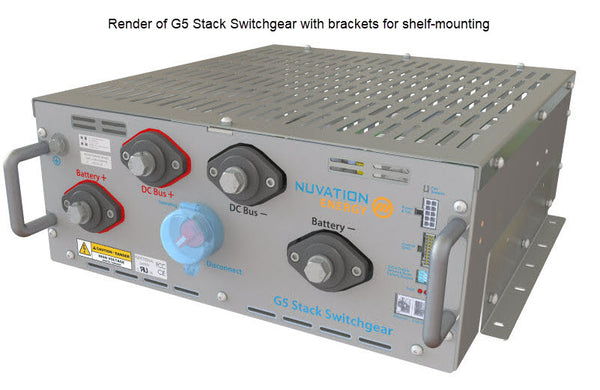

  • Shelf mount

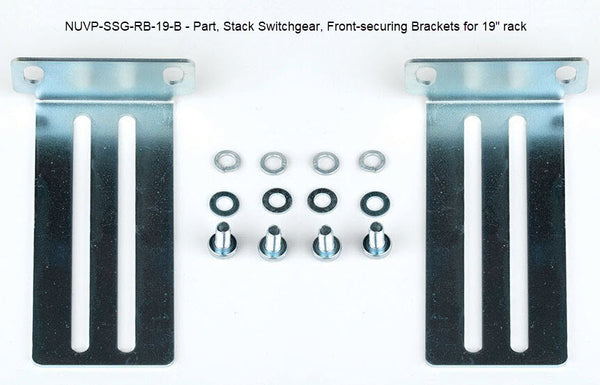

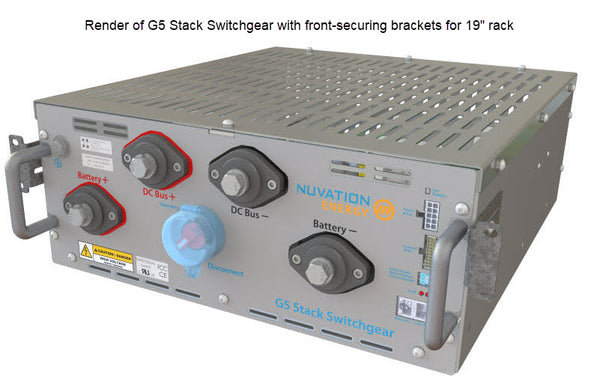

  • 19" rack front-securing

• Cable Kit

  • No Kit
  • Kit with AC Power Cable, which includes

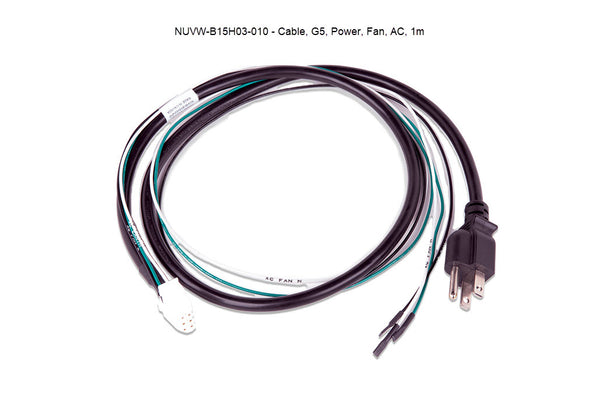

    • 1x Power, Fan, AC Cable, 1m

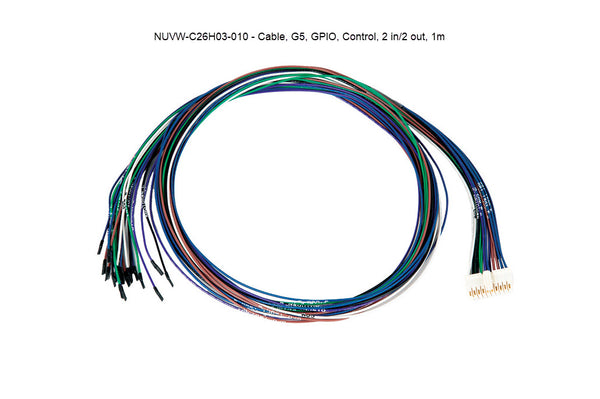

    • 1x GPIO, Control, 2 in/2 out, 1m

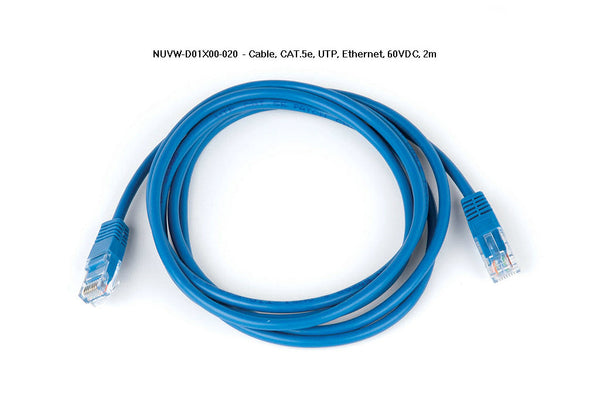

    • 1x CAT.5e, UTP, Ethernet, 60VDC, 2m
  • Kit with DC Power Cable, which includes

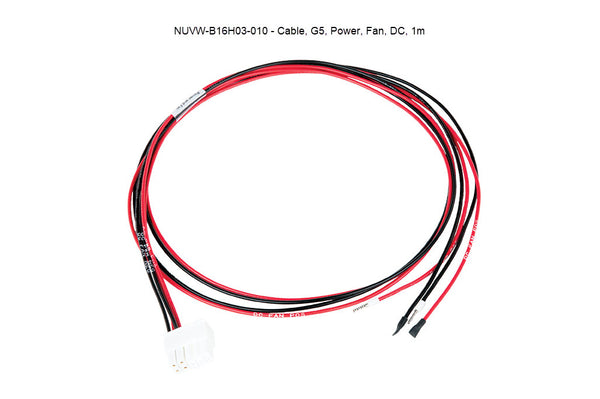

    • 1x Power, Fan, DC Cable, 1m
    • 1x GPIO, Control, 2 in/2 out, 1m
    • 1x CAT.5e, UTP, Ethernet, 60VDC, 2m
